PowerBeat X3

PowerBeat X3

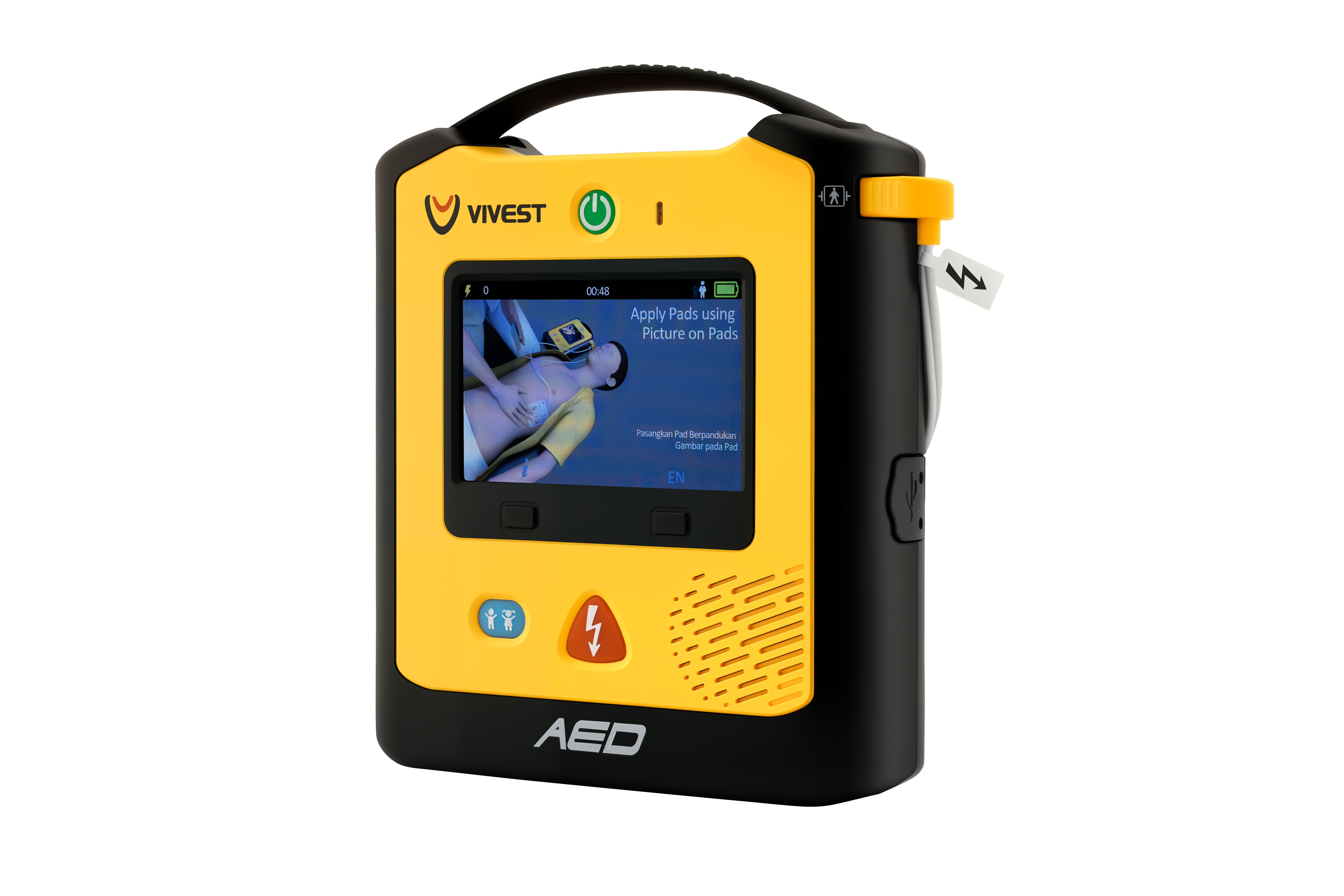

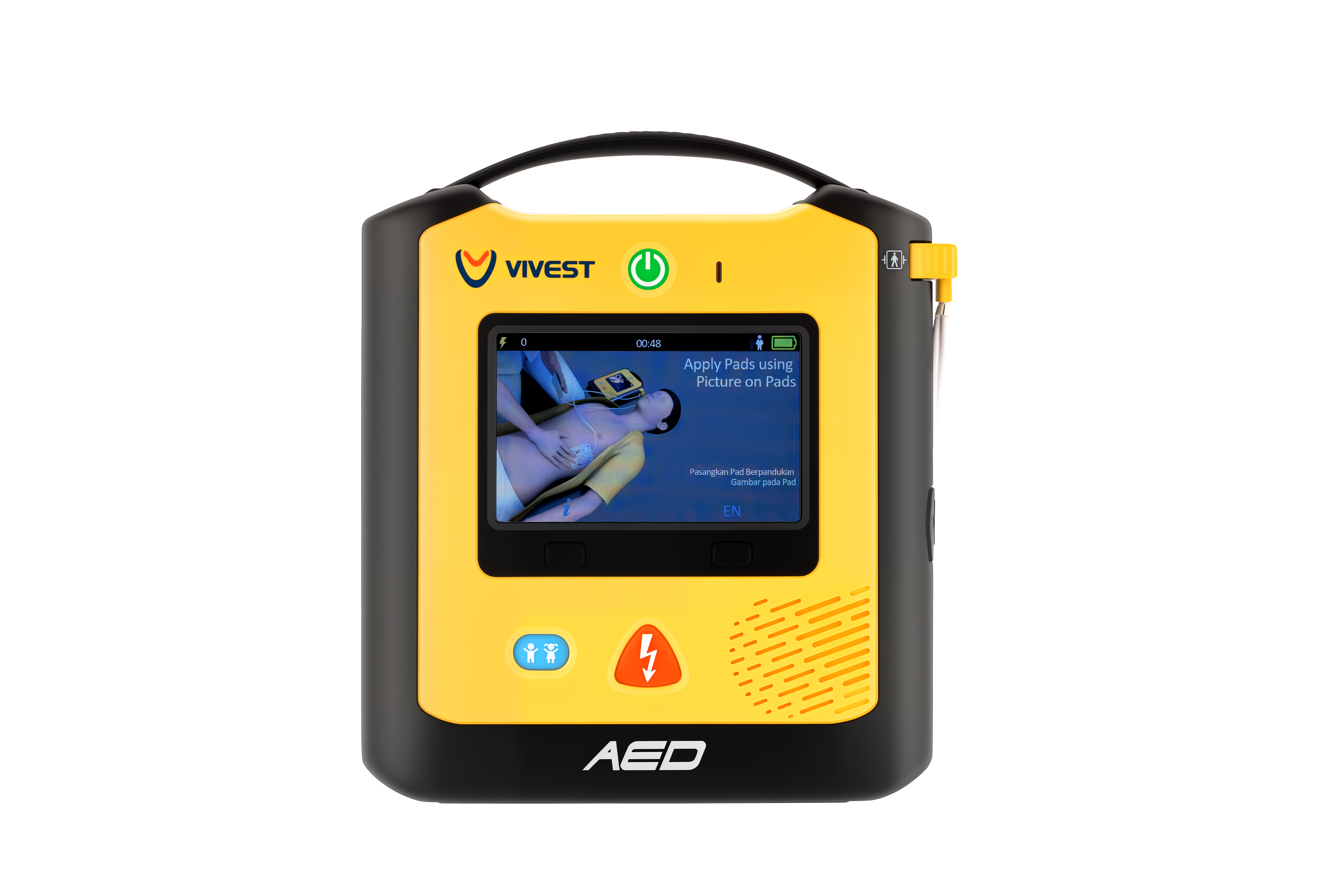

Intuitive Guidance with LCD Color Display

PowerBeat X3 is a semi-automatic AED designed for everyday public environments where immediate response is needed. It features a 5-inch color screen that displays step-by-step instructions along with voice prompts, and supports bilingual switching. This combination helps create optimal conditions for a fast, effective, and safe response to Out-of-Hospital Cardiac Arrest.

The device includes a dedicated child mode, daily self-tests, and a durable IP55-rated housing. Its compact design allows easy installation in offices, schools, transport areas, and other high-traffic locations, supporting fast action when every second counts.

1.5 KG

The device weight is only 1.5 kg

150 Joules

150 Joules fixed-energy defibrillation

IP 55

IP55 Dust and Water Resistance

Compact and Durable

The device is only 1.5kg, light and easy to carry with handle.
All six sides of the device can withstand a 1.5-meter drop impact.
IP55-rated dust and water resistance.

User-Friendly Operation

Electrode pads are pre-connected.
Animation via LCD screen and voice guidance throughout the rescue process.
Child button to switch the AED into Child Mode.

Smart Management

Daily, weekly, monthly and quarterly self-tests ensure device is ready for use at all times.
Universal pads suitable for both adult and child patients.
Fleet management enabled, messages on status and geo location including movement tracking.

Advanced and Safe

Utilize Biphasic Truncated Exponential (BTE) waveform with automatic impedance compensation.
Deliver effective 150J defibrillation while minimizing myocardial damage.
Fast and stable ECG analysis, with shock readiness achieved in less than 7 seconds after “Shock Advised” prompt.

Specification Comparison

PowerBeat X1
PowerBeat X3

Data parameters

PowerBeat X1

PowerBeat X3

Dimensions (H × W × D)
5.9 × 23.2 × 20.9 cm
5.9 × 23.2 × 20.9 cm
Child Mode
Yes
Yes
LCD Screen
no
yes
Language Switch
no
yes
Dust & Water Resistance
IP55
IP55
Daily Self-Test
yes
yes
Battery Standby Life
5 years
5 years
Drop Impact Resistance
1.5 m
1.5 m

Application Area
