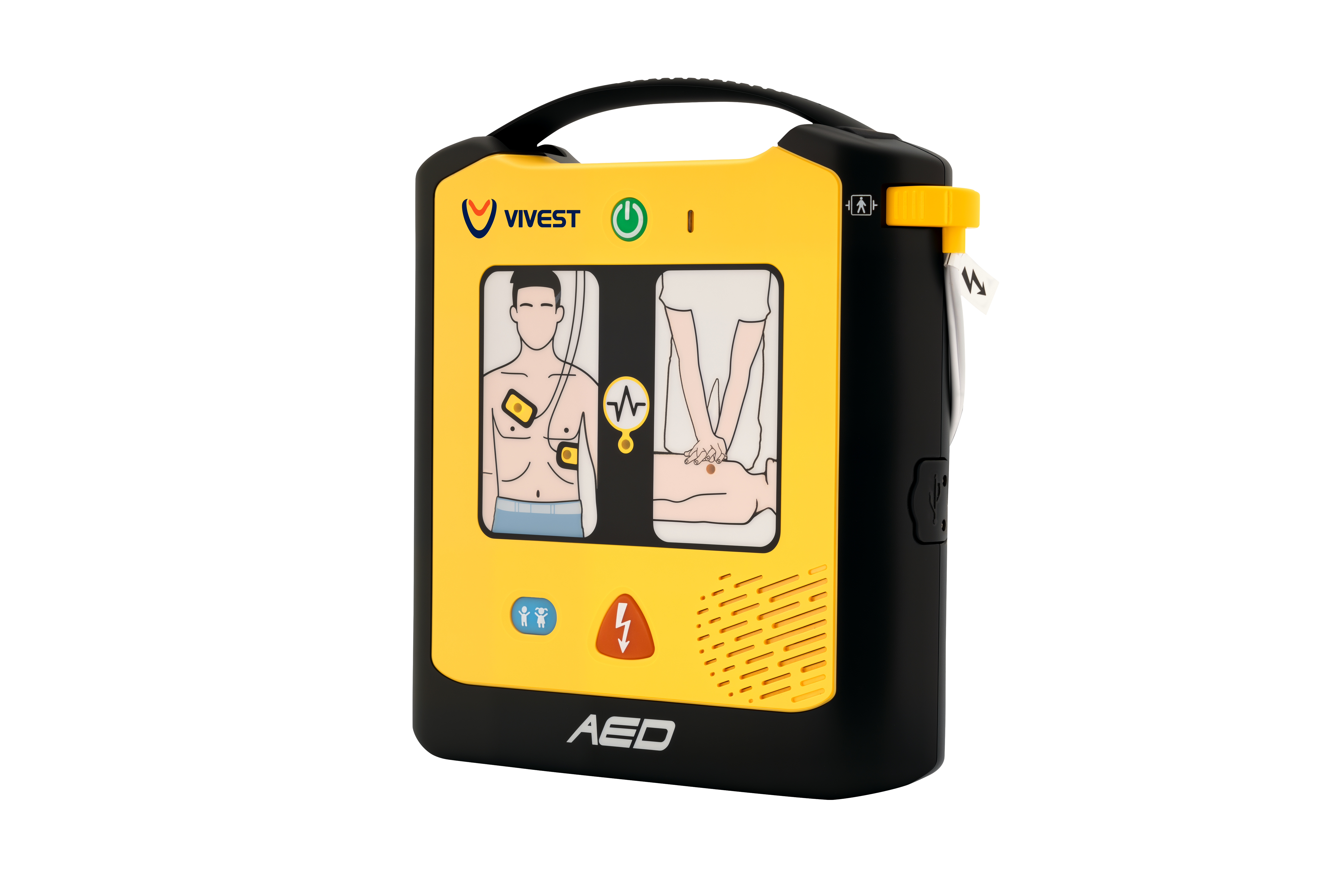

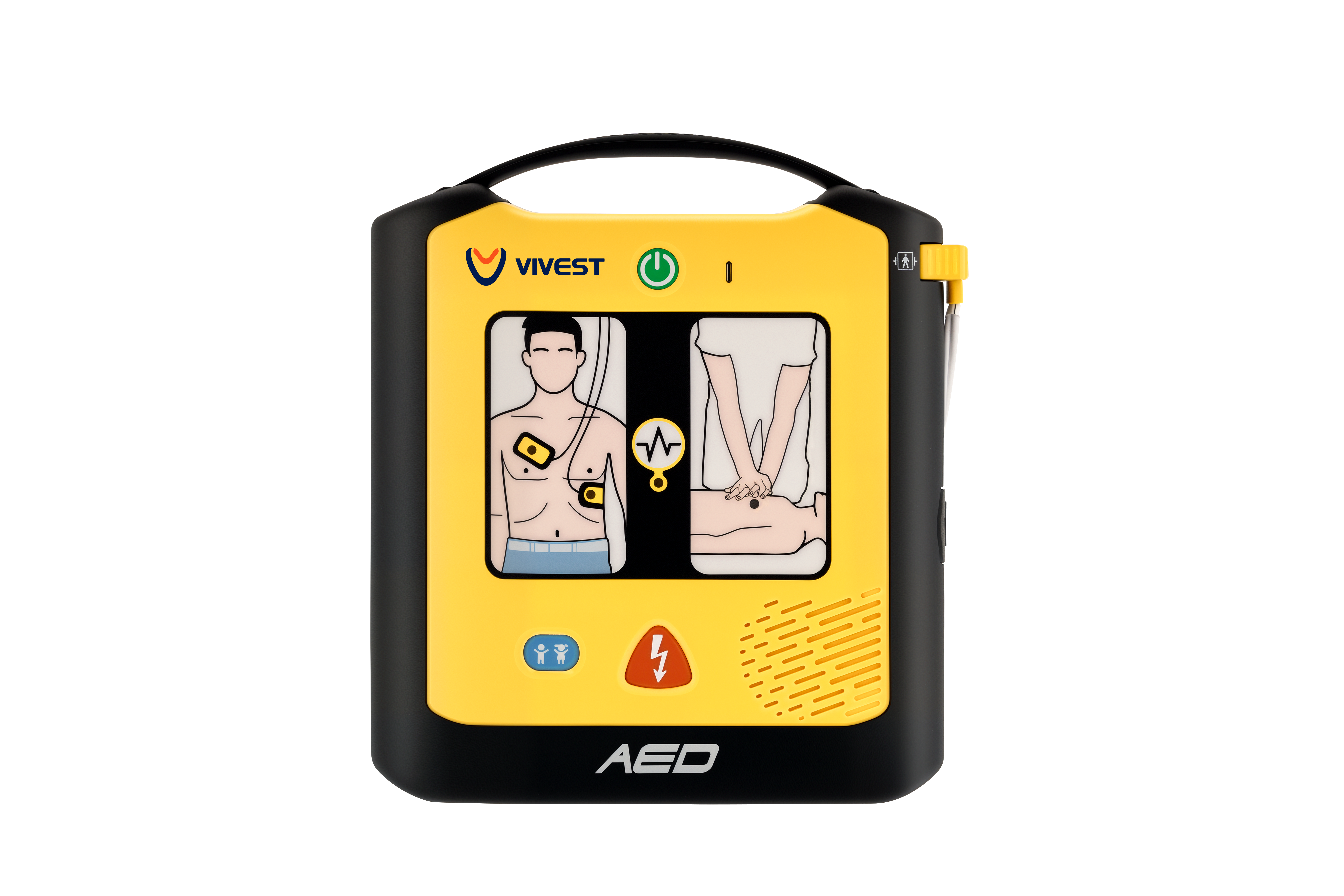

PowerBeat X1

Simple and Clear Guidance with Voice Prompts and Pictograms

PowerBeat X1 is a semi-automatic AED designed for everyday public environments where immediate response is needed. With a slim, 1.5 kg lightweight build, along with voice prompts and straightforward status indicator lights, it helps users respond quickly to sudden cardiac arrest.

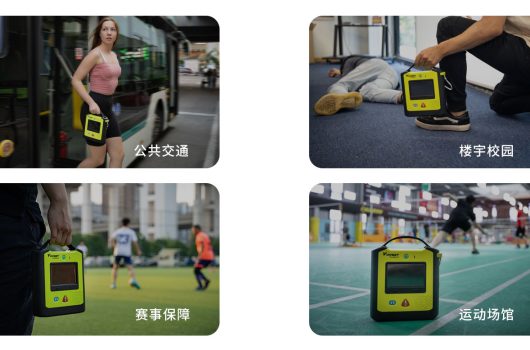

The device includes child mode, daily self-tests, and a durable IP55-rated housing. Its compact design allows easy installation in offices, schools, transport areas, and other high-traffic locations, supporting fast action when every second counts.

1.5 KG

The device weight is only 1.5 kg

150 Joules

150 Joules fixed-energy defibrillation

IP 55

IP55 Dust and Water Resistance

Compact and Durable

The device is only 1.5kg, light and easy to carry with handle.

All six sides of the device can withstand a 1.5-meter drop impact.

IP55-rated dust and water resistance.

User-Friendly Operation

Electrode pads are pre-connected.

Voice guidance for rescue throughout the process.

Child button to switch into Child Mode.

Smart Management

Daily, weekly, monthly and quarterly self-tests ensure device is ready for use at all times.

Universal pads suitable for both adult and child patients.

Fleet management enabled, messages on status and geo location including movement tracking.

Advanced and Safe

Utilize Biphasic Truncated Exponential (BTE) waveform with automatic impedance compensation.

Deliver effective 150J defibrillation while minimizing myocardial damage.

Fast and stable ECG analysis, with shock readiness achieved in less than 7 seconds after “Shock Advised” prompt.

Specification Comparison

Specification

PowerBeat X1

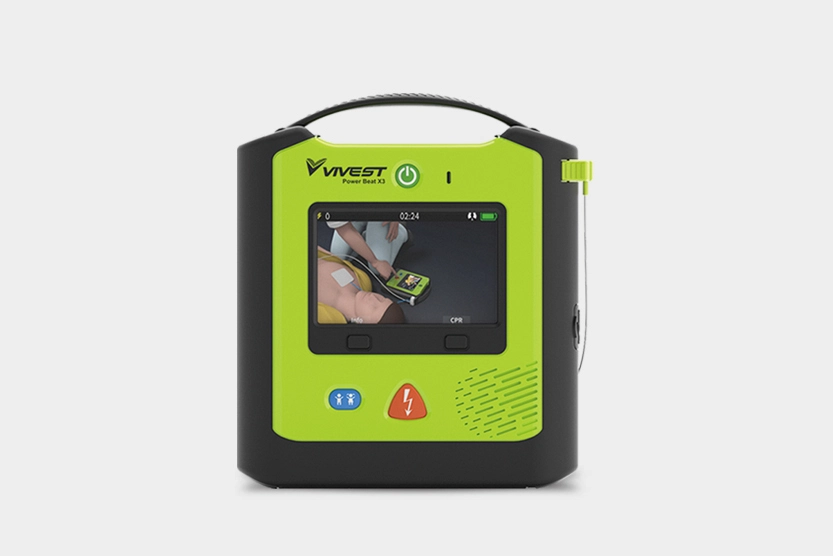

PowerBeat X3

Dimensions (H × W × D)

5.9 × 23.2 × 20.9 cm

Child Mode

Yes

LCD Screen

no

yes

Language Switch

no

yes

Dust & Water Resistance

IP55

Daily Self-Test

yes

Battery Standby Life

5 years

Drop Impact Resistance

1.5 m
